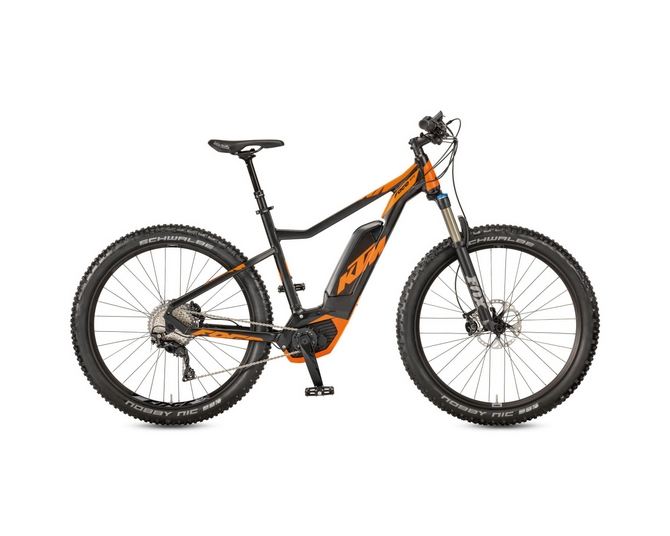

KTM Macina Fogo 271 Electric Bike 2017


KTM Macina Fogo 271 model 2017, the new MTB line for all occasions

KTM Macina Fogo 271, an absolute innovation in 2017 by the Austrian company, is a single suspension ebike with aluminum frame with excellent performance for all uses, both leisure and challenging trek. Thanks to high level components and the use of the latest technologies is in the construction of the frame and in that the propulsion system. With the use of the complete gear Sram EX1 and hydraulic brake Shimano Deore XT, this bike allows the user to experience immediate comfort. Thanks to the couple of new Bosch Performance CX motor and the 500Wh battery. The fork is chosen Magura Boltron with air and toppled stems promises the fork to change the game in the field of single suspension ebike. KTM Macina Fogo 271 is suitable for both off-road trekking and more difficult routes than the usual hiking trails open to a broad audience. White color and KTM Orange details and wheels 27.5" Plus!

Components of MTB KTM Macina Fogo 271

The electric MTB KTM Macina Fogo 271 is a mix of innovations, it mounts wheels 27.5" with tire Schwalbe Nobby Nic Tubeless Ready Snakeskin Apex in Plus format (measuring 70-584) mounted on a rim KTM Line Tubeless, the inverted fork with air the Magura Boltron reduces unsprung weight to have a more responsive feeling with 120mm of excursion and lockable handlebar. The gear is SRAM EX1 to 8 speeds with lever SL EX1 to 8 speeds, derailleur RD EX1 and sprocket XG899 of 8 pinions with 11 to 48 teeths, which allows fast and accurate change in any situation. The hydraulic braking system is the Shimano Deore XT M8000 with 180mm discs and pads with forced cooling. Ultimately the eBike Macina Fogo 271 has all the features to become the new benchmark of single suspension ready for any type of use from touring to the mountain.

The propulsion system MTB KTM Macina Fogo 271 2017

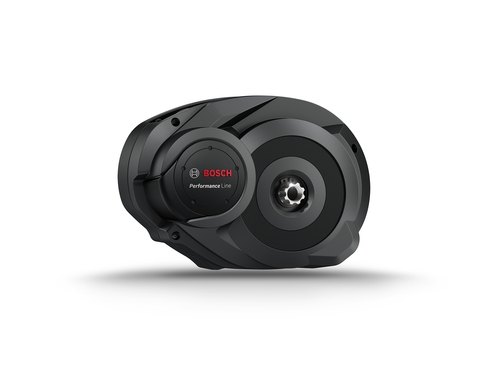

The model Macina Fogo 271 mounts the latest evolution Bosch motor, the Performance CX. The electronic motor Performance CX processes data from different sensors, torque, speed, cadence that collects pulses a thousand times per second, thereby ensuring efficiency at the highest level. Because of this combination the motor results in very fluid in the delivery 75nm of torque up to speed of 25 Km/h which is limited by the law. The dashboard Intuvia, mounted as standard with handlebar comand, allows you to view all the most important information for the user, to charge any type of external device with a USB port, to advise the best time to change and manage the degree of assistance naturally. The power supply is entrusted to the lithium-ion Bosch from 500Wh to 13.9Ah that is recharged in just 3.5 hours, thanks to the charger that came with the ebike.


  • Propulsion system: Bosch Performance CX 250W, display Intuvia
  • Battery: Bosch Powerpack Lithium 500Wh, 13.9Ah
  • Frame: Macina Fogo 27.5" aluminum, boost, total weight 21.4Kg
  • Fork: Magura Boltron, 110mm of excursion, in air with toppled stem
  • Brakes: Shimano Deore XT M8000, discs 180/180
  • Brakes: Shimano Deore XT M8000, discs 180/180
  • Gear lever: SRAM SL EX1 8-speed
  • Derailleur: SRAM RD EX1 8-speed
  • Sprocket: Sram XG899, 8 pinions 11 to 48 teeth
  • Circles: KTM Line Tubeless - DT Swiss 350 Boost
  • Tires: Schwalbe Nobby Nic da 27.5" Plus, measuring 70-584 Tubeless Easy, Snakeskin, Apex
    Occasionally without notice, manufacturers sometimes change product specifications.
