KTM Macina Sport CL 10 CX5I


£2,499.99

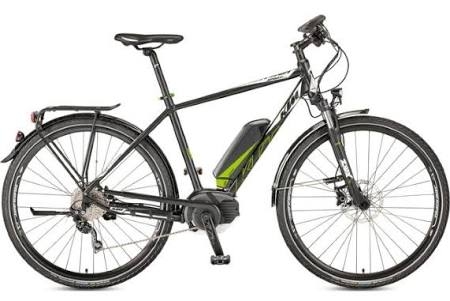

KTM Macina Sport CL 10 CX5 2017 Mens Electric Bike
The Macina Sport CL 10 is an excellent fully-kitted trekker and urban commuter with a good amount of power behind the motor to get you anywhere with ease. With front and rear lights and mudguards, kickstand, rear pannier rack, ergonomic barends and chainguard, it's a comfortable, clean and safe ride. 1x10 drivetrain is ample for any grade you may find yourself climbing, and it has a good top end speed. Alloy frame is light and stiff, and the battery/motor combo is compact and highly efficient, making it much lighter by contrast than a lot of predecessors in the e-bike world.

Frame and Forks
Frame: Macina Trekking w/ Bosch motor integration
Fork: Suntour NEX HLO Coil

Drivetrain
Front Derailleur: N/A
Rear Derailleur: Shimano Deore 10-speed Shadow +
Cassette: Shimano HG50 11-36 10-speed
Chain: Shimano 10-speed
Crankset: KTM Delta, ISIS Drive
Bottom Bracket: Bosch/ISIS

Braking/Shifting
Shifters: Shimano Deore 10-speed
Brakes: Shimano M365 Hydraulic, 180/160mm Rotors
Brake Levers: Shimano Hydraulic

Wheels
Rims: KTM Line 18" Disc, double wall alloy
Hubs: Shmano Deore 9mm QR F+R, Centerlock Disc
Spokes: Stainless steel
Tyres: Schwalbe Marathon Mondial, 28x1.60" F+R

Electronics
Battery: PowerPack 13.8Ah – 500Wh

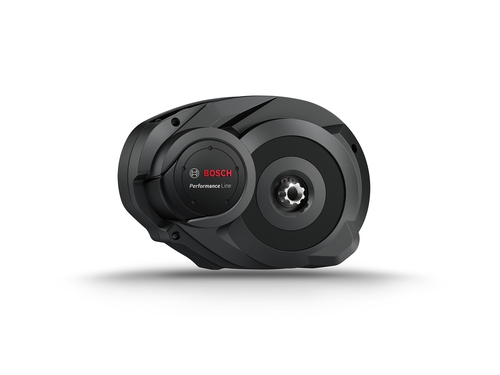

Motor: BOSCH Drive Unit 36V-250W / 25KM/H
Interface: Intuvia LCD Display / Remote / Walk-Assist

Finishing Kit
Handlebar: KTM Comp alloy riser, 620mm wide
Grips: Ergonomic Lock-on
Stem: KTM Alloy
Seatpost: KTM Alloy, 350x30.9mm
Saddle: Selle Royal Ariel
Pedals: Trekking platform
